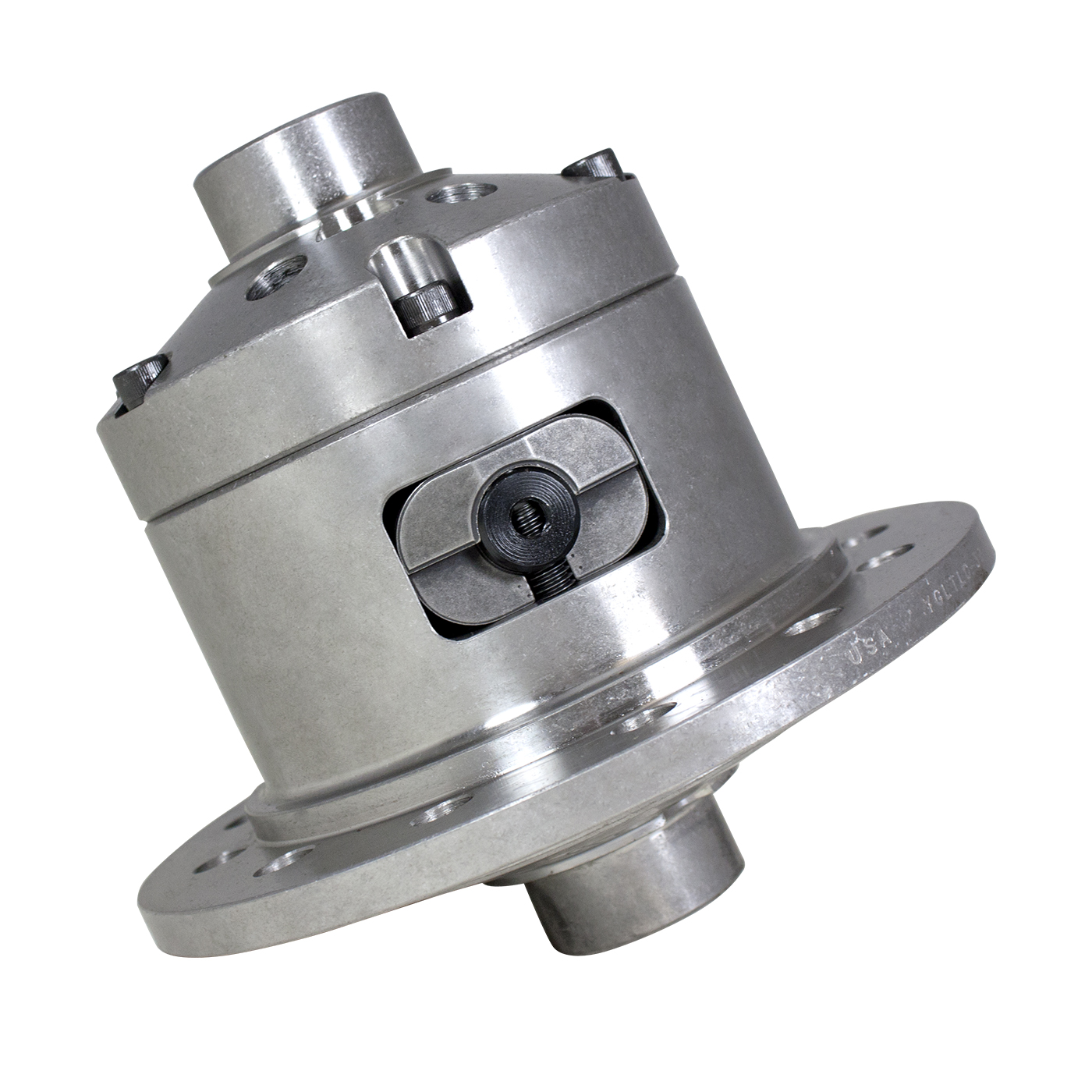

Yukon Grizzly Locker for Toyota Landcruiser, 30 spline | YGLTLC-30 | RANDYS Worldwide

Product Details

Everything about the Yukon Grizzly Locker is hardcore, its casing and gears, its advanced gear tooth design, and its impact on traction and performance. The Yukon Grizzly Locker is a mechanical positive-locking differential that’s engineered for rock crawling, serious trail running, off-road racing, and drag racing. The unit provides 100% power to both tires, while still allowing for disengagement while negotiating turns. The Yukon Grizzly Locker is a patented design that features innovations that make it tougher than the competition. Its inner clutch teeth have a larger radius at the base, which offers up to 350% greater strength versus back-cut designs. The Grizzly Locker’s larger teeth also resist breakage caused by shock-loading or catastrophic axle failure. It’s a serious piece of mechanical engineering for serious driving conditions.

  • Fits Toyota 9.5" Landcruiser with 30 spline axles
  • Patented internal design reduces common locker failures
  • 8620 internals for added strength
  • Assembled in the USA

Technical Notes

  • 45mm Bearing Journals, uses TK LM603049/ LM603014 bearings. On rear C-clip applications, the RH bearing cap must be removed to removal and install the x/p bolt. 4.56 & UP ratios may have to grind one R/G tooth for X/P installation & removal.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Upsell YESLOCKER
Brand Yukon Gear & Axle
Prop65 Warning Not Applicable
Keywords 30spl,30spl,69,69,69,9.5,90,90,97,97,COMPLETE,CRUISER,CRUISER,DET,FF,FF,FRONT,FRONT,GRIZZLY,GRIZZLY,LAND,LAND,LC,LOCKER,LOCKER,POSI,REAR,REAR,SF,SF,TLC,TLC-GRIZ-30,TOYOTA,TOYOTA,YGL,YGL
Technical Notes
  • 45mm Bearing Journals, uses TK LM603049/ LM603014 bearings. On rear C-clip applications, the RH bearing cap must be removed to removal and install the x/p bolt. 4.56 & UP ratios may have to grind one R/G tooth for X/P installation & removal.
Spline Count 30
Ratio 2.00
EndRatio 8.00
UPC 883584280323
ProxyNumber 28032
Width 11.00 in
Length 11.00 in
Depth 11.00 in
Weight 20.3500 lb
Brand: Yukon Gear

Yukon Grizzly Locker for Toyota Landcruiser, 30 spline

YGLTLC-30

7 in stock, backorders available

$1,027.89 $822.31
